Space-Saving Installation
When compared to conventional pumps, the 2AV1's monoblock design delivers the benefits of a simple, compact, and economical installation. Since the pump and motor are integral and self-supporting, there is no need for additional baseplates, couplings, or guards, which add to the cost, complexity, and overall size of the installation.
Rugged And Reliable
We focused on durability and dependability when we developed these liquid-ring pumps. With a reinforced stainless steel shaft and sealed bearings, the 2AV1 can provide up to 20,000 hours of maintenance-free operation.
Quiet Operation
The NASH 2AV1 is expertly designed and manufactured to be quiet and vibration-free. With sound pressure levels of less than 75 dBA, it complies with the strictest noise standards, eliminating the need for additional sound attenuating devices.

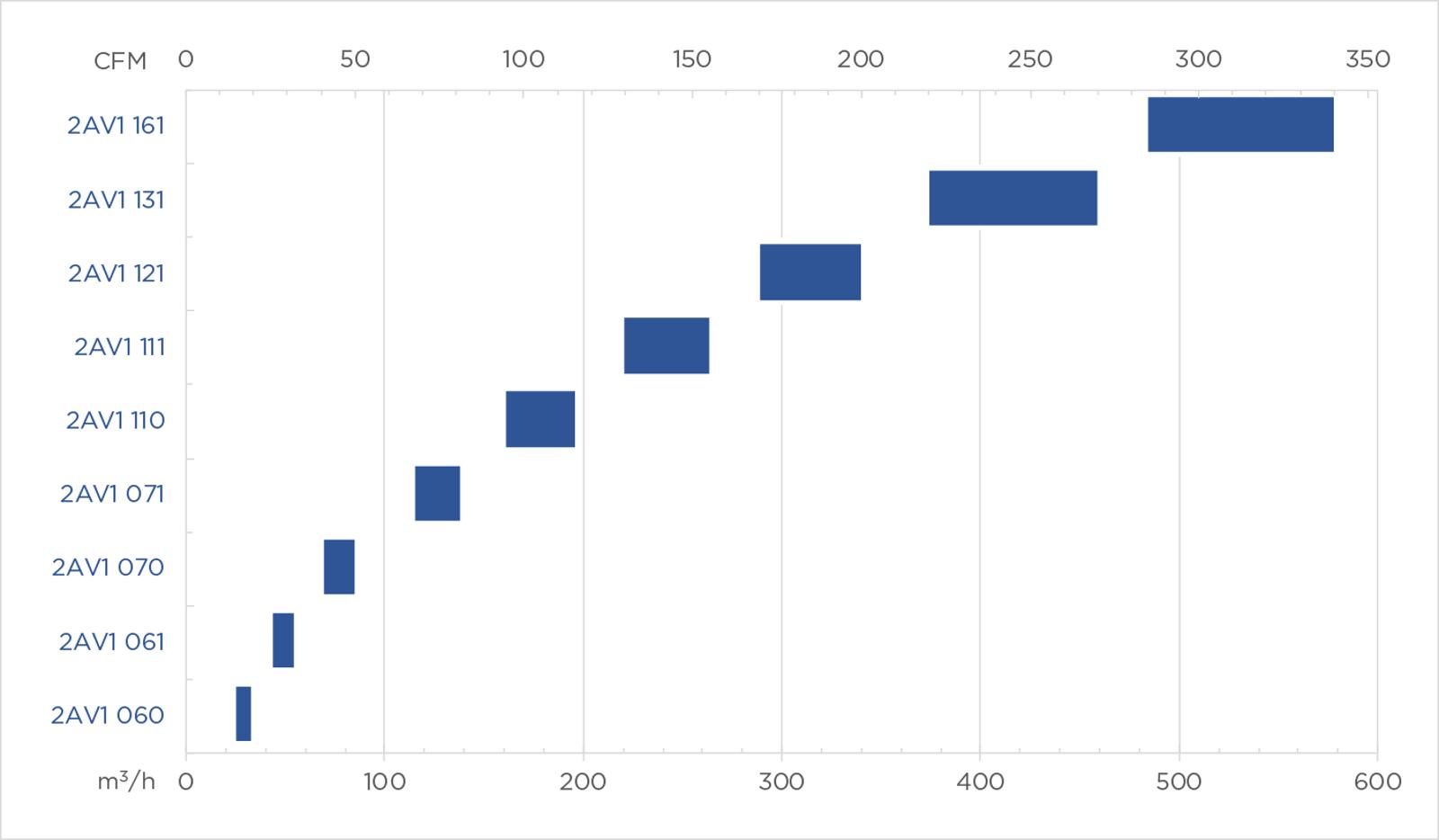

- Suction Capacity: 15 to 340 ACFM (25 to 580 m3/h)
- Vacuum Range: to 1 inHgA (to 33 mbar abs.)
- Discharge Pressure Range: to 32 psia (to 2.2 bar abs.)
- Differential Pressure: 19 psi (1.3 bar abs.)
- Shaft Seals: Mechanical Seals
