- Coaxial Close-Coupled design with integrated motor and pump, saving space, easy to install, and convenient for maintenance;
- Mechanical seals are used, and the flexible valve plate automatically adjusts the size of the exhaust port to achieve high efficiency and energy savings, with no liquid leakage and no environmental pollution;
- Smooth operation with low noise levels, as low as 62 decibels;
- Unified corrosion-resistant design, with stainless steel material suitable for more demanding applications;
- Unique flexible exhaust port design prevents over-compression, ensuring optimal efficiency within its performance range;
- Explosion-proof motor option available.

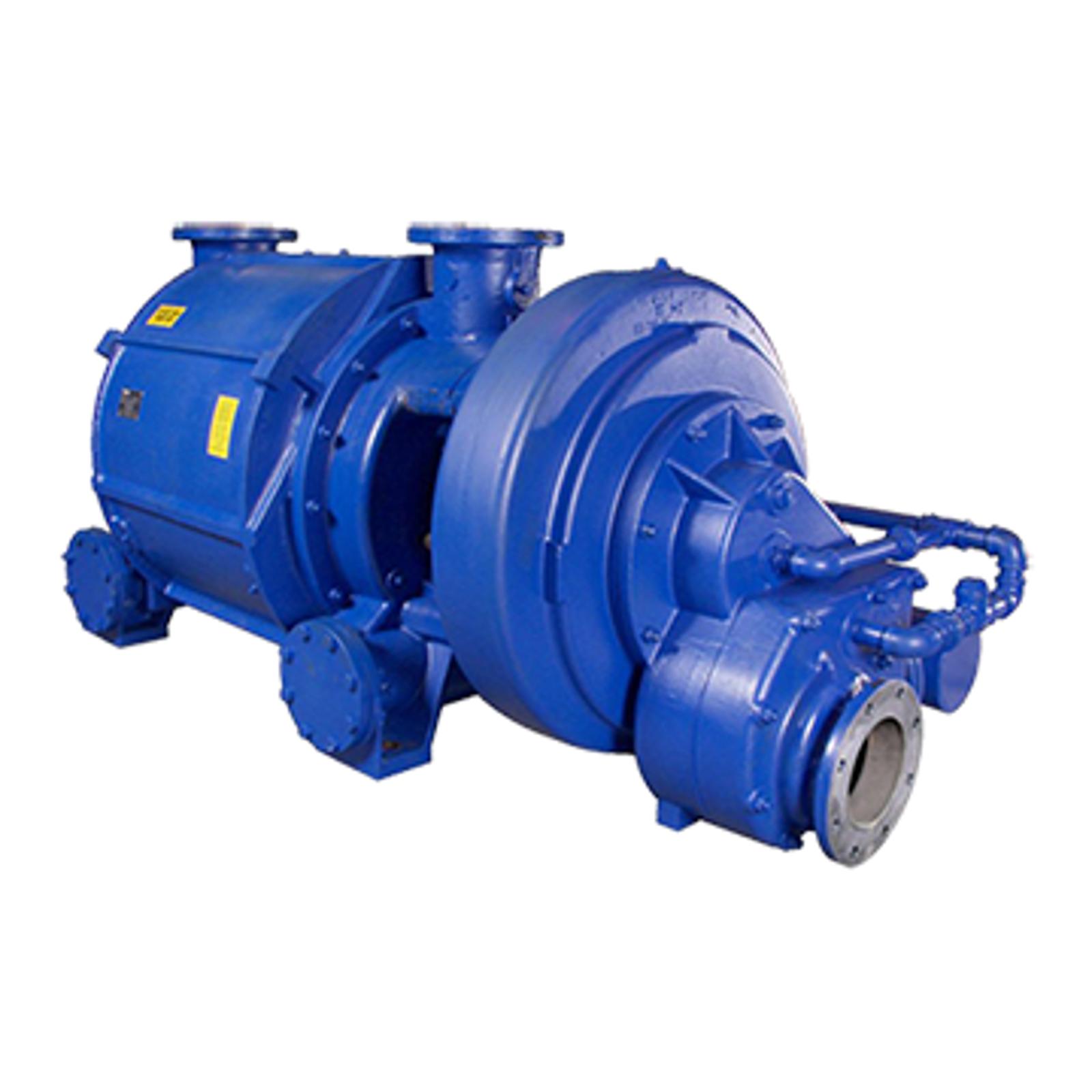

The 2BV liquid ring vacuum pump is designed for the evacuation of gases and water vapor, with an inlet pressure capability of 33 mbar absolute (97% vacuum). When equipped with an atmospheric ejector, the inlet pressure can be further reduced to 10 mbar. The ejector can be directly mounted on the vacuum pump. When used as a compressor, the 2BV can achieve a maximum pressure of up to 0.26 MPa (absolute).
During operation, the compression process of gases in the 2BV liquid ring vacuum pump and compressor is isothermal. This means that the temperature remains relatively constant throughout the compression cycle. As a result, when handling flammable and explosive gases, the risk of hazardous situations is significantly reduced. This characteristic makes the 2BV highly versatile and suitable for a wide range of applications.
The 2BV liquid ring vacuum pump and compressor are widely used across various industrial sectors, including pharmaceuticals, food and beverage, packaging, plastics, ceramics, tobacco, and general industrial applications. They are known for their high efficiency, energy savings, safety, and reliability, playing an indispensable role in these industries.
